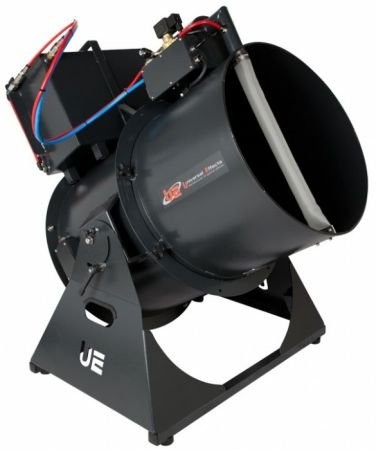

Universal-Effects Europe  Snow machine UE ST-Snow Machine 500

Universal-Effects Europe  Snow machine UE ST-Snow Machine 500

The UE ST-Snow Machine 500 is a very powerful snow machine that meets the requirements of show and amusement professionals. It is a powerful machine that throws up snow flakes over large areas and over 25 meters. Adjusting flake size is possible. Více informací

 Skladem
167 036
138 046 bez DPH
DPH:
21 %
ks
Výrobce:
Universal-Effects Europe
Katalogové číslo:
PFPFMA500203
Záruka:
2 roky
The UE ST-Snow Machine 500 is a very powerful snow machine that meets the requirements of show and amusement professionals. It is a powerful machine that throws up snow flakes over large areas and over 25 meters. Adjusting flake size is possible.

This snow machine is fitted with our usual professional base, so that it can be used on the floor, on a raising base, on a shooting turret or hung under a structure. It has been designed for fixed or mobile, small to medium facilities. Comes complete with an aluminium tank fitted with a level sight, a valve and an industrial connection system. Connecting large capacity optional tanks is possible.

Made from ALUMINIUM and STAINLESS STEEL, the UE ST-Snow Machine 500 is a durable product. Each component was selected keeping in mind its quality and its efficiency.
SPECIFICATIONS

PART LIST :
- 1 x UE ST-Base 500
- 1 x Head Snow 500
- 1 x tank Alu 500
- 5 x Tightening bolts for heads

TECHNICAL CHARACTERISTICS OF BASES:
Horizontal Dimensions: L 56 x W 79 x H 79 cm
Weight: Version ECO 38 kg - Version STD 39 kg - Version DMX 39.5 kg
230V – 50/60Hz – 1500W – 6.5A – IP 55 (European Version)
115V – 60Hz – 1500W – 13A – IP 55 (US Version)
Compliance with norm CE ERP 2015
Nose level 91 dB / 3m indoor
Nose level 81 dB / 3m outdoor
Standard base
Adjustment to vertical 110°
Attachment under a structure is possible

TECHNICAL CHARACTERISTICS OF HEAD :
Dimensions: L 42 x W 59 x H 66 cm
Weight: 15 kg
Power rating:
230V – 50/60Hz – 1400W – 6.1A –(European Version)
115V – 60Hz – 1400W – 12.2A – US Version)
Tank dimensions: L 47 x W 34 x H 39 cm
Tank weight: 6 kg
Tank capacity: 25L

CONSUMPTION AND PRODUCTION :
Production of snow to 25 metres
Consumption of snow liquid: from 30 to 60 L/h

Please see below how to select the type of control :
ECO: control through manual setting using the fan speed selection button and power through IEC - Schuko cable with 5x20mm glass fuse.
STD: control through a manual setting, from 0% to 100%, of fan speed.
DMX: full control through with manual and remote adjustment and a DMX-512 connection.
Power supply using 2m cables with Plugs PowerCon & Shuko plugs on versions and resettable fuse on STD&DMX versions.
