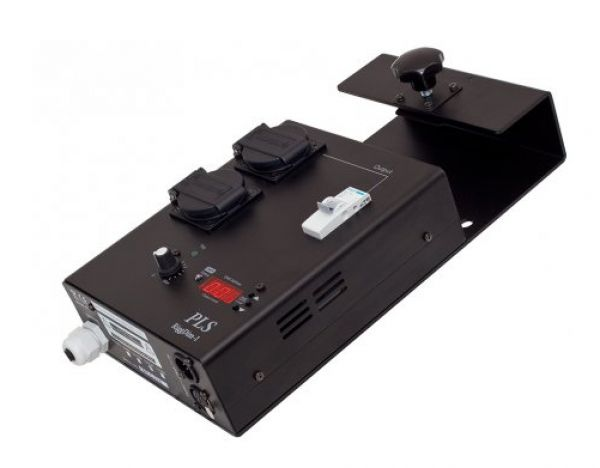

PLS Electronics RD 110-SW
1x2,3kW (1x10A) portable dimmer with Swiss 10A output Více informací
Skladem
10 140Kč
8 380Kč
bez DPH
- DPH:
- 21 %
Four different models: 2×1.4 kW (2×6 A), 2×2.3 kW (2×10 A), 1×2.3 kW (1×10 A) and 1×3.7 kW (1×16 A)
Schuko, CEBEC, UK BS13630, Swiss or CEE16A sockets for outputs
Power input via rubber cable with Schuko plug (except 2×2.3 kW model).
Other plug types are available on request.
Global DMX start address set on seven segment display by push buttons
Test function to check operation and loads
Schuko, CEBEC, UK BS13630, Swiss or CEE16A sockets for outputs
Power input via rubber cable with Schuko plug (except 2×2.3 kW model).
Other plug types are available on request.
Global DMX start address set on seven segment display by push buttons
Test function to check operation and loads
Technické informace
| Mains | 115 V / 230 V 50 or 60 Hz |
|---|---|
| Filtering (RD1xx model) | 150 μs between 10% and 90% at full load and 90° phase angle |
| Filtering (RD2xx model) | 75 μs between 10% and 90% at full load and 90° phase angle |
| Control connectors | 5-pole XLR Input-Throughput for DMX-512 (optically and power isolated) |
| Mounting type | Directly mountable onto 50 mm truss |
| Operating temperature | 0 °C to 35 °C (RH: 0-90%, non-condensing) |
| Dimensions | 170×320×70 (W×H×D in mm + cable gland) Package dimensions: 185×405×100 (W×H×D in mm) |
| Weight | 2.5 kg (net), 3 kg (gross) |
