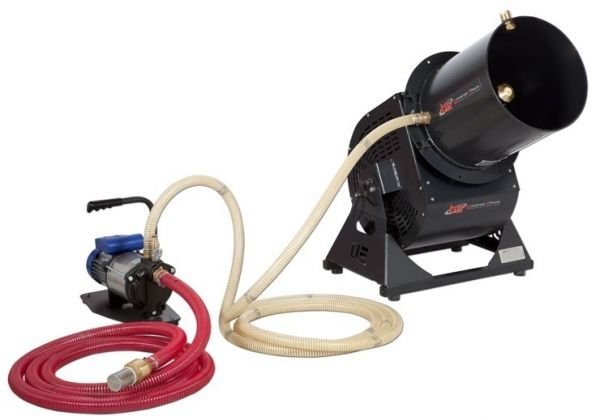

The UE XT-Mist & Rain Machine 350 is a powerful mist & rain machine fitted with high quality centrifugal ventilation. The noise level is low. You can use it to create your own weather conditions. To cool down the atmosphere, throw up water in mist mode. When you want to create a watered stage, with wind, use the rain mode. This effect is used by cinema and video productions, and by theme parks. Comes complete with its pump fitted on a support and all required pipes.
This mist & rain machine is fitted with our usual professional base, so that it can be used on the floor, on a raising base, on a shooting turret or hung under a structure. Comes complete with its pump fitted on a support and all required pipes.
Made from ALUMINIUM and STAINLESS STEEL, the UE XT-Mist & Rain 350 is a durable product. Each component was selected keeping in mind its quality and its efficiency.
PART LIST :
- 1 x UE XT-Base 350
- 5 x Tightening bolts for heads
- 1 x UE HeadMist & Rain 350
- 1 x Pump 350
- 1 x pipe set
TECHNICAL CHARACTERISTICS OF BASES:
Horizontal Dimensions: L 51 x W 63 x H 68 cm
Weight: Version ECO 29.8 kg - Version STD 30.6 kg - Version DMX 30.6 kg
230V – 50Hz – 1250W – 6A – IP 54 (European Version)
115V – 60Hz – 1250W – 12A – IP 55 (US Version)
Compliance with norm CE ERP 2015
Nose level 71 dB / 3m indoor.
Nose level 61 dB / 3m outdoor.
Adjustment to vertical 110°.
Attachment under a structure is possible.
TECHNICAL CHARACTERISTICS OF HEAD :
Dimensions: L 45 x W 37 x H 42 cm
Weight: 24.6 kg
230V – 50Hz – 800W – 3.7A – IP 44 (European Version)
115V – 60Hz – 800W – 7.4A – IP54 (US Version)
CONSUMPTION AND PRODUCTION :
Projection of mist cloud to 6m.
Consumption of water using the mist nozzle: 3L/min
Projection of rain to 6m.
Consumption of water with the rain nozzle: 47L/min
Please see below how to select the type of control :
ECO: control through manual setting using the fan speed selection button and power through IEC - Schuko cable with 5x20mm glass fuse.
STD: control through a manual setting, from 0% to 100%, of fan speed.
DMX: full control through with manual and remote adjustment and a DMX-512 connection.
Power supply using 2m cables with Plugs PowerCon & Shuko plugs on versions and resettable fuse on STD&DMX versions.
