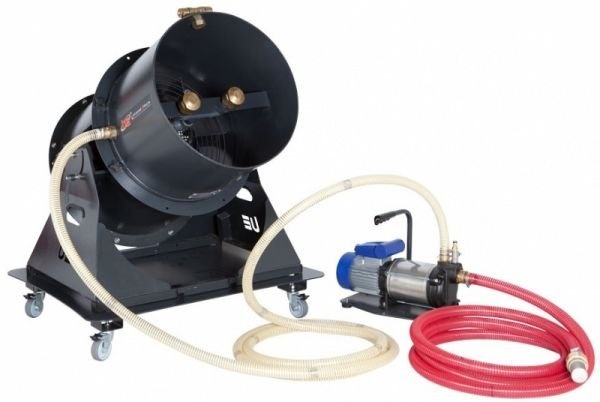

The UE ST-Mist & Rain Machine 500 is a very powerful mist & rain machine. You can use it to create your own weather conditions. To cool down the atmosphere, throw up water in mist mode. When you want to create a watered stage, with wind, use the rain mode. This effect is used by cinema and video productions, and by theme parks.
This mist & rain machine is fitted with our usual professional base, so that it can be used on the floor, on a raising base, on a shooting turret or hung under a structure. Comes complete with its pump fitted on a support and all required pipes.
Made from ALUMINIUM and STAINLESS STEEL, the UE ST-Mist & Rain 500 is a durable product. Each component was selected keeping in mind its quality and its efficiency.
PART LIST :
- 1 x UE ST-Base 500
- 5 x Tightening bolts for heads
- 1 x UE HeadMist & Rain 500
- 1 x Pump 500
- 1 x pipe set
TECHNICAL CHARACTERISTICS OF BASES:
Horizontal Dimensions: L 56 x W 79 x H 79 cm
Weight: Version ECO 38 kg - Version STD 39 kg - Version DMX 39.5 kg
230V – 50/60Hz – 1500W – 6.5A – IP 55 (European Version)
115V – 60Hz – 1500W – 13A – IP 55 (US Version)
Compliance with norm CE ERP 2015
Nose level 91 dB / 3m indoor
Nose level 81 dB / 3m outdoor
Adjustment to vertical 110°
Attachment under a structure is possible
TECHNICAL CHARACTERISTICS OF HEAD :
Dimensions: L 42 x W 59 x H 51 cm
Weight: 32.8 kg
230V – 50Hz – 1300W – 6.1A – (European Version)
115V – 60Hz – 1300W – 12.2A – (US Version)
CONSUMPTION AND PRODUCTION :
Projection of a mist cloud to 10m.
Consumption of water using the mist nozzle: 6L/min
Projection of rain to 10m.
Consumption of water with the rain nozzle: 74L/min
Please see below how to select the type of control :
ECO: control through manual setting using the fan speed selection button and power through IEC - Schuko cable with 5x20mm glass fuse.
STD: control through a manual setting, from 0% to 100%, of fan speed.
DMX: full control through with manual and remote adjustment and a DMX-512 connection.
Power supply using 2m cables with Plugs PowerCon & Shuko plugs on versions and resettable fuse on STD&DMX versions.
