PROLED - MBN  INGROUND LINEAR TRILED

PROLED - MBN  INGROUND LINEAR TRILED
 Skladem
5 460
4 512 bez DPH
DPH:
21 %
ks
Výrobce:
PROLED - MBN
Katalogové číslo:
L17148
Záruka:
2 roky

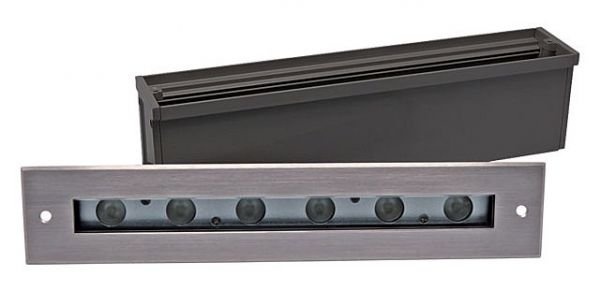

The PROLED INGROUND LINEAR series is designed for floor or ceiling integration and offers various design possibilities in architectural illumination.

  • dimmable, automatic colour change, DMX 512 controllable by MBNLED RGB DMX power supplies/controller
  • incl. powder coated aluminium mounting sleeve grey

Technické informace

Technical Data
IP classification:IP67 (for outdoor use)
Power source:24 VDC Common Cathode (CC)
Frame:stainless steal 316
Housing:powder coated aluminium grey, 8 mm tempered glass
Mounting sleeve:powder coated aluminium grey
Load capacity:exert force area of ø10 mm = 500 kg, ø30 mm = 900 kg, ø60 mm = 1200 kg
Electrical connection:1x cable 0,5 m H05RN-F 4x 0,75 mm² to open wires
Operating temperature range:-10° C till +45° C
Photometric Data
LED type:Harvatek RGB 3-in-1 LEDs 1,5 Watt
Luminous flux:red 33 Lumen
green 75 Lumen
blue 14 Lumen
r+g+b (white) 119 Lumen
Wave length:red 625 nm
green 518 nm
blue 462 nm
Beam angle:30°
order codecolourLED pcsLED powerpower consumption*weight
L17148RGB69 Watt8-10 Watt1,6 kg
